16-17 Seater Minibus with Dual Wheelchair Access (2 Wheelchair Positions)

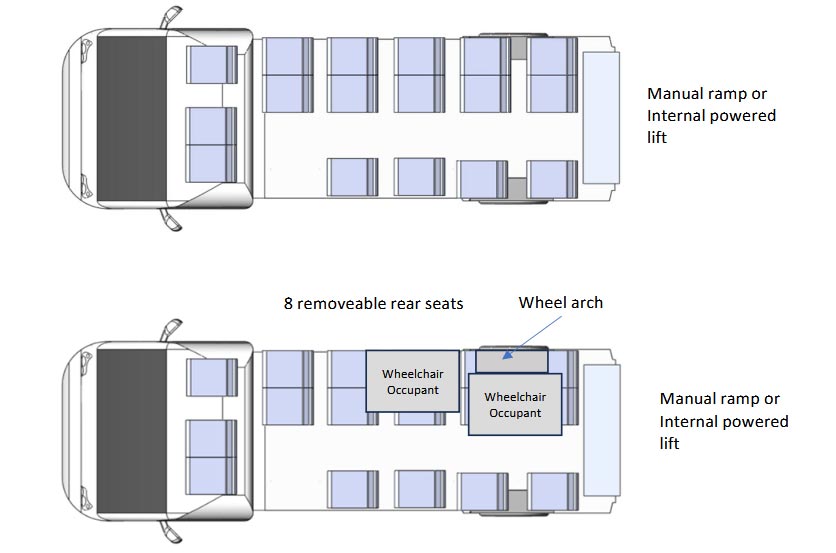

Driver, plus 16 seats – or Driver, plus 8 seats & dual wheelchair occupants
16-17 Seat Minibus for Sale – Dual Wheelchair Access – Ideal for Community transport (CTA)
16-17 seater wheelchair accessible minibus specifications & key features
Vehicle Conversion
| Internal |
|---|
| 14 x M2 Saloon seats |
| 6 x M2 Fixed seats, complete with seat belts |
| 8 x M2 Removable seats complete with seat belts |
| First aid kit |
| 2KG Fire Extinguisher – 1 to cab |
| Dual Grab Handle – Smooth yellow |
| Modesty panel to side loading door, with pole floor to ceiling. |
| Combined Wheelchair + Passenger restraints - Split Reel & Karabiner |
| 3rd point fixing upper - for double inertia |
| Clamp storage container |
| Easy to use rear folding access ramp, Internal or external lift |
| External |
|---|
| 600mm door-operated cantilever sidestep |
| Emergency escape hatch & glass top roof hatch 1,027 x 690mm |
| Underbody Wax Treatment to ramp fixings |
| Interior Lining, Floor & Window |
|---|
| Interior Saloon grey carpet covering |
| Ultra-light composite flooring with vinyl anti-slip covering |
| Single aluminium step edging with tiger-stipe anti-slip covering to side and rear doors |
| 1 x Sliding window to offside front – tinted |
| “All buckled up” seat belt sensor system to saloon seat including monitor |
| 6 x Fixed windows to rear panels – tinted |
| Emergency glass hammer(s) |
| Miscellaneous |
|---|
| Trek-Minibus Logo |
| Internal Decals |
| External Decals |
| External Decals |
|---|
| Tyre Pressure settings |
| Diesel Fuel Only |
| Uprated Gross Vehicle Weight (GVW) to 4.25T |
| Electrical Equipment |
|---|
| 2 x Ceiling mounted courtesy step light - 1 to side door and 1 to rear doors |
| 4 x Flush fitting LED interior lights with high glow entry and subtle mood lighting |
| Internal Decals |
|---|
| Maximum Seating Capacity |
| No Smoking |
| Vehicle Dimensions - Feet, inches / meters, and mm |
| Decal - Seatbelts must be worn |
Minibus Warranty & Aftercare Support
All our 16-17 seater minibuses are supplied with comprehensive warranty protection and ongoing support.
36 months or 60,000 miles – whichever occurs first
12 month breakdown cover
Weight and payload information Table
| Version | Gross vehicle weight (Kg) | Unladen weight (Kg) | Allowance (Kg) |
|---|---|---|---|
| No wheelchair access | 4250 | 2640 | 1610 |
| Manual Ramp | 4250 | 2720 | 1530 |
| Internal tail lift | 4250 | 2745 | 1505 |
| External underfloor tail lift | 4250 | 2815 | 1435 |
Contact Now
Please fill in your details in the boxes below, and a member of the Trek-Minibus team will contact you as soon as possible.
Your Details:
FAQ's – Dual Wheelchair Accessible 16-17 Seater Minibus
How many passengers can travel with two wheelchair users onboard?
When both wheelchair spaces are occupied, seating capacity adjusts accordingly. Exact numbers depend on the chosen layout and vehicle weight limit.
How do I fit the wheelchair into the minibus?
Our Trek-Minibus team are able to demonstrate the full process before or after the vehicle handover.
What type of wheelchair restraint system is installed?
The vehicle includes certified four-point restraint systems and occupant seatbelts to ensure secure and compliant transport.
Does adding two wheelchair spaces affect payload capacity?
Yes. Carrying wheelchair users impacts payload and weight distribution. Full weight specifications are provided to ensure compliant operation.
Can the seating layout be customised?
Yes. Seating layouts can often be adapted depending on your organisation’s requirements and passenger needs.
Is finance avaliable for dual wheelchair minibuses?
Yes. Finance options are available. Please enquire with our team.
